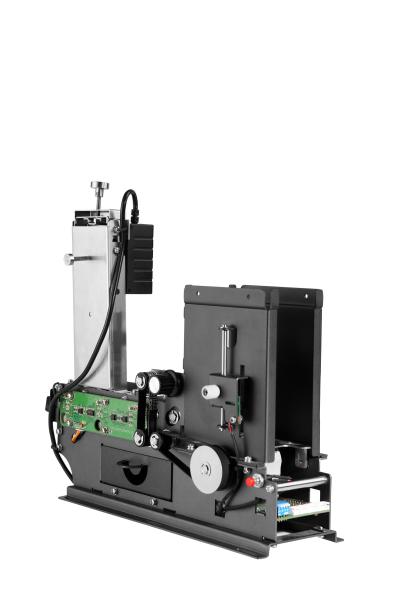

2D Barcode Motorised Smart Card Dispenser DC 24V 2A Voltage Input Black
Technical data
| Subject | Content |
| Work Power | 24VDC (Max. current 2A,static current 0.1A ) |
| Operation Temperature | -20 ℃ to 85 ℃ |
| Operation Humidity | 30-90% (RH) |
| Interface | RS232 optional |
| Card stay position | Multiple card stay position |
| Operation Conditions | Installed in the operation cabinet |
| Available Card | Width : 54 ± 0.5 mm Length : 85 ± 0.5 mm Thickness: 0.2 – 2.0mm adjustable Card Material: Paper card or polyester card, and barcode card |
| N.W | 2.7Kg(Including card holder) |
| Stacker capacity | 150pcs standard cards based on the thickness of 0.76 mm |
| Few card alert | 7~50 pcs(preset 15pcs of 0.76mm thick cards) |
| Install dimension | Refer to attached product structure drawing |
III Features and Functions
1) Card empty or pre-empty detect and sound alarm.
2) Has a special card retrieving box to retrieve card.
3) Preventing dispensing double card simultaneously: Up gear and down gear swirl in different direction, and friction dispensing card can avoid dispensing double card at the same time, even suitable to some distorted cards.
4) Can issue cards in the stacker in normal condition. Most distorted cards can be issued by using card holder.
5) Especially suitable for issuing thin paper cards, and card dispenser can also be set according to customers’ requirement.
6) Card thickness adjustment is convenient, precise and easy to operate.
7) RS232 control interface. can make multiple machine communication.
8) Pre-dispensing function accelerates the speed and ensures the continuous card issuing.
9) Can read barcode card.
